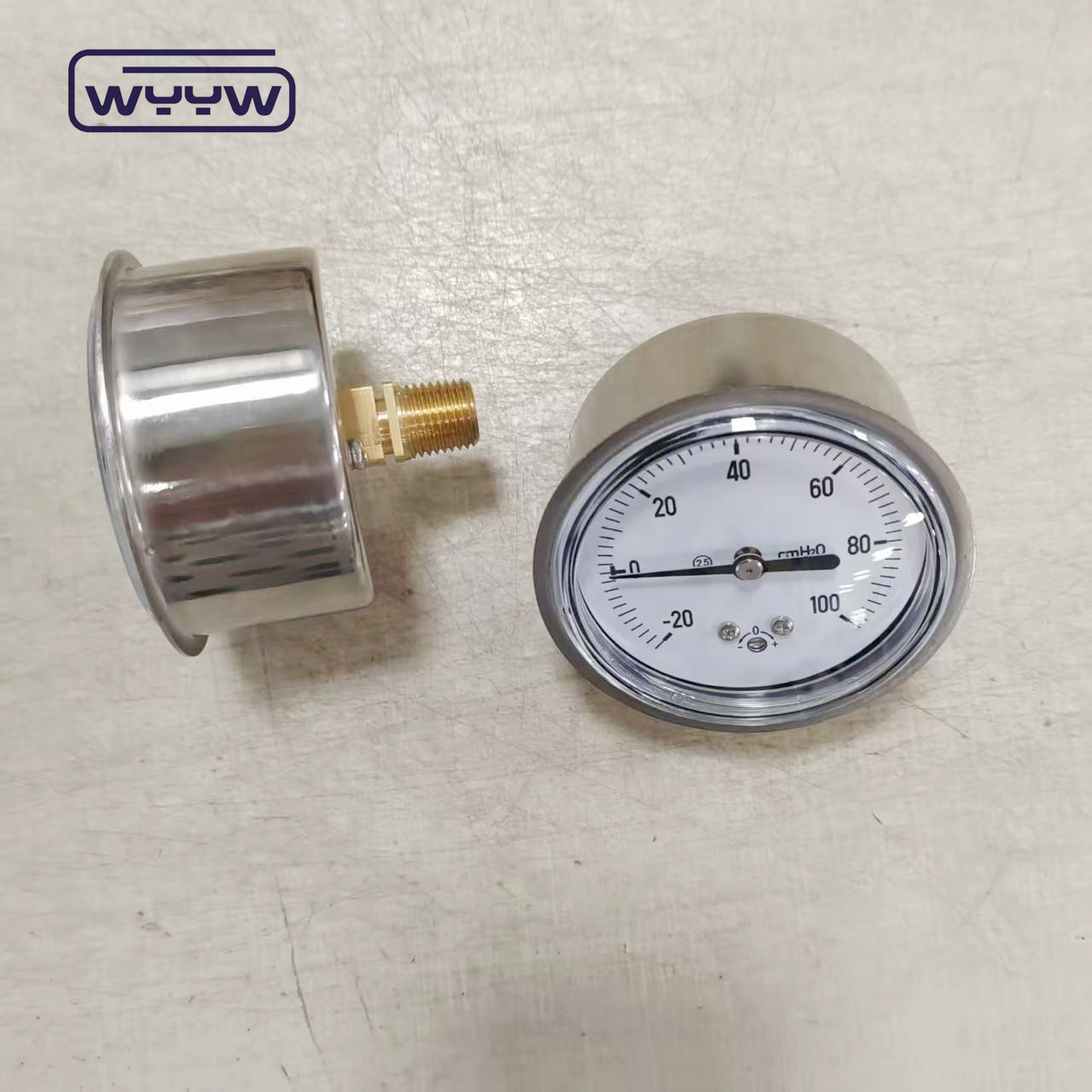

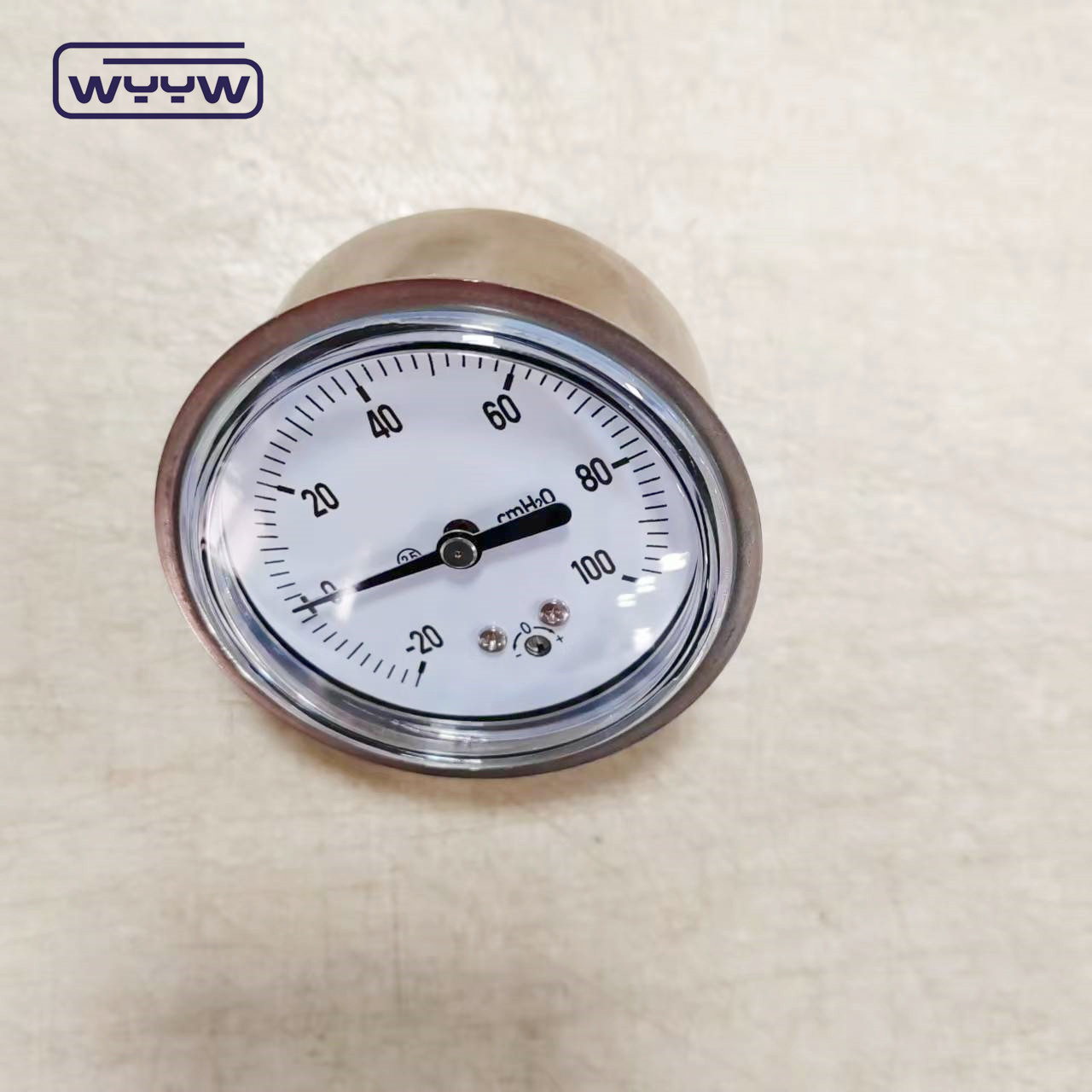

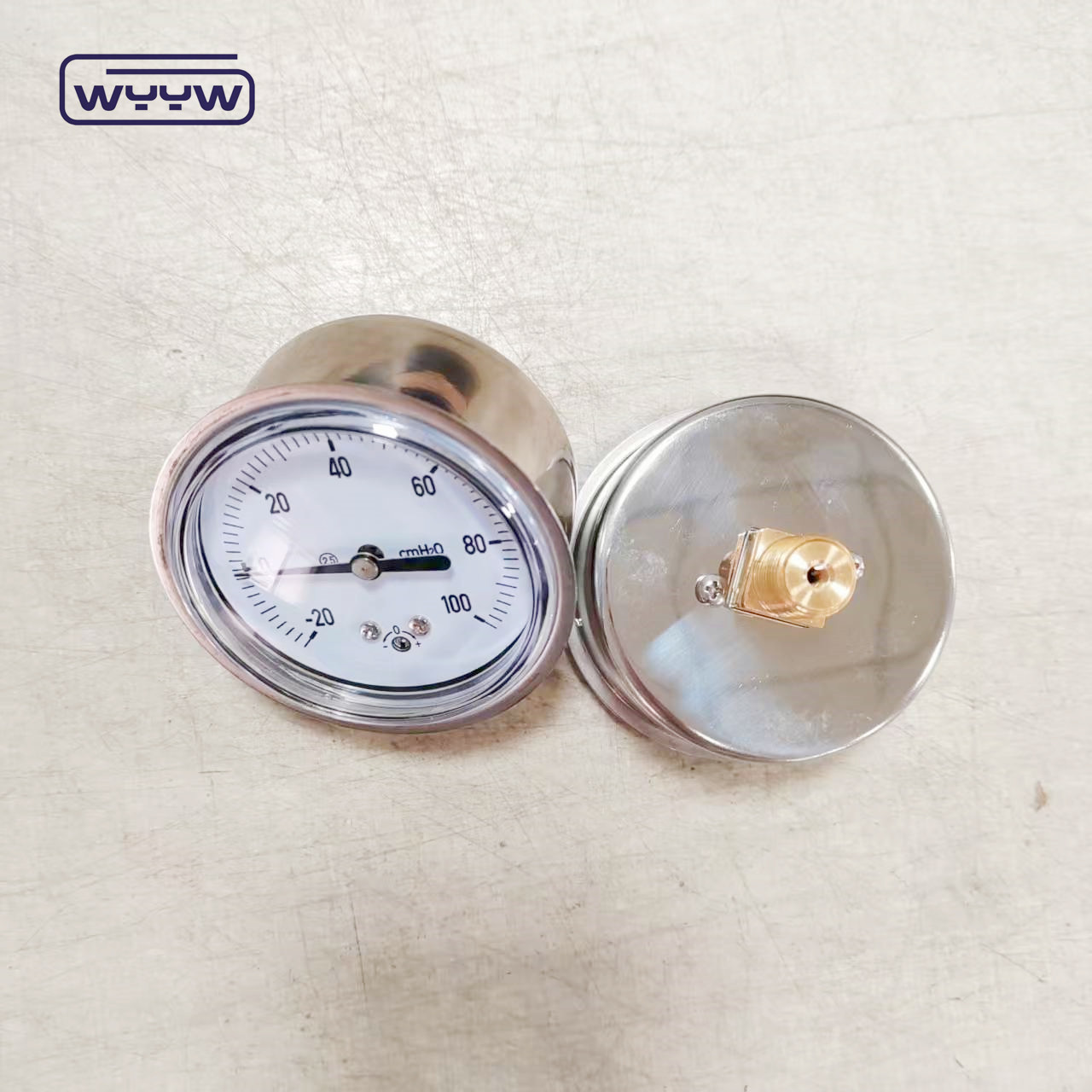

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge

20 штук
MOQ
$10.00/pieces
цена
63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Материал: Корпус из нержавеющей стали и латун
Связь: Назад
Диапазон давления: Микро низкое давление
Точность: 2,5%
Размер набора: 63 мм
Порт: Циндао
Основная информация
Место происхождения: Шаньдун, Китай
Фирменное наименование: WYYW
Сертификация: CE ISO
Номер модели: Ye-63
Оплата и доставка Условия
Упаковывая детали: Каждый блок в одной бумажной коробке, 30 коробок в одной коробке. Как запросил клиент.
Время доставки: 20-30 дней
Условия оплаты: T/T, Western Union
Поставка способности: 10000 штук/кусочки в месяц
Характер продукции

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 0

Product Description

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 1

Name

Capsule/ Bellows/ Low pressure manometer

Dials Size

63/100/150mm (or dail size made as demand)

Case

Black Steel,Stainless steel

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Gasket under the window

Movement

Brass,Stainless Steel

Socket

Brass,Stainless Steel

Bourdon tube

Phosphor Bronze,Stainless Steel

Dial plate and pointer

Aluminum

Window

Glass; Safe Glass

Connection sizes

1/8" for 1.5; 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom/ Back

Liquid

dry, silicone or glycerine filled

Accuracy

2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 2

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 3

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 5

Company Information

Qingdao DaZeFengYang Meter & Welding Instruments Co., Ltd, situated in the vibrant city of Qingdao, Shandong province, operates as an integrated processing enterprise specializing in pressure gauges and bimetal thermometers, among other products. Upholding the highest standards, we diligently adhere to the ISO-9001 and CE certifications within the international Quality Management System throughout our design, production, and testing processes.

Our facility, guided by the core tenets of "Best Quality and Credit," stands as the chosen supplier for esteemed domestic and international enterprises in need of mechanical, electrical, and instrument equipment. Our business ethos revolves around fostering reciprocal and mutually beneficial relationships.

With a shared vision for a brighter tomorrow, we eagerly anticipate the opportunity to collaborate and collectively shape a prosperous future together!



63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 6



63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 7

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 8

Packaging & Shipping

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 9

Advantages
  • Cutting-Edge Equipment and Expertise: We are dedicated to delivering top-quality gauges worldwide, leveraging state-of-the-art equipment and professional know-how.

  • Unmatched Post-Purchase Support: Our unwavering commitment to exceptional after-sales service is geared towards fostering enduring trade partnerships.

  • Rigorous Quality Assurance: Each of our pressure gauges undergoes thorough 100% inspection, bolstered by our ISO9001 and UL certifications.

  • Swift Dispatch: Timely deliveries are our hallmark, ensuring that customer requirements are always promptly met.

  • Streamlined Procurement and Cost Efficiency: As adept manufacturers, we offer a seamless purchasing experience and premium products at competitive prices, helping you save costs.

  • Tailored OEM Solutions: Over the years, we have successfully fulfilled numerous OEM orders for renowned companies in the USA and European markets, showcasing our customization capabilities and reliability.
